Enovation Controls

Nová inovativní nabídka produktů uControl ™ mobile machine controllers.
P
oskytuje přesné ovládání pro těžká zařízení v ultra členitých prostředích. Porovnejte si níže v tabulce technické parametry a vyberte si verzi pro vaše potřeby. Pokud si nejste jistí výběrem, kontaktujte nás, rádi vám pomůžeme.

Ke stažení máte k dispozici následující dokumenty:
Technické informace pro MC4-21-14-H8
Technické informace pro MC4-26-20
Pokyny pro instalaci software

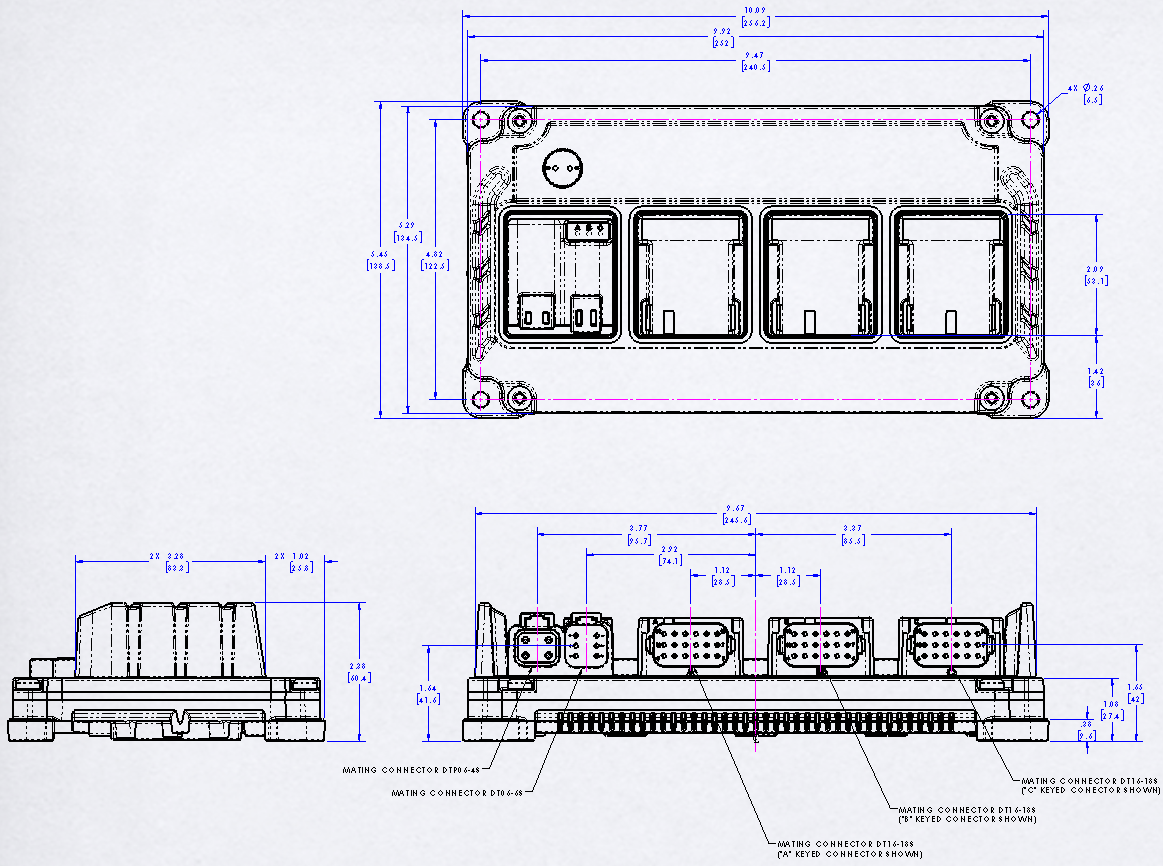

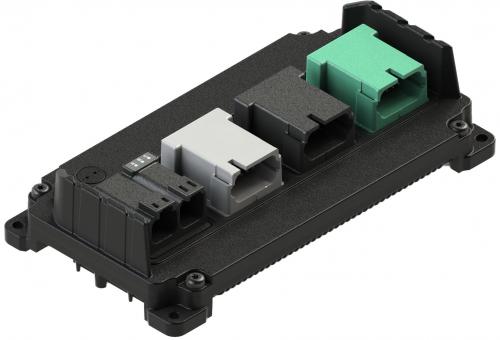

uControl™ MC4-26-20

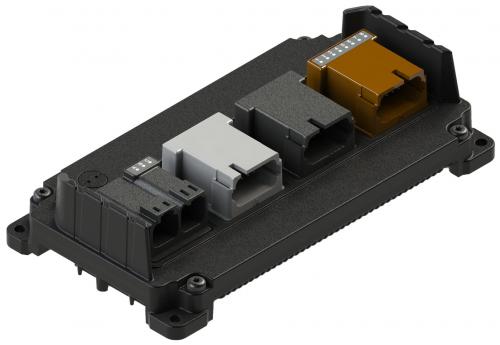

uControl™ MC4-21-14-H8

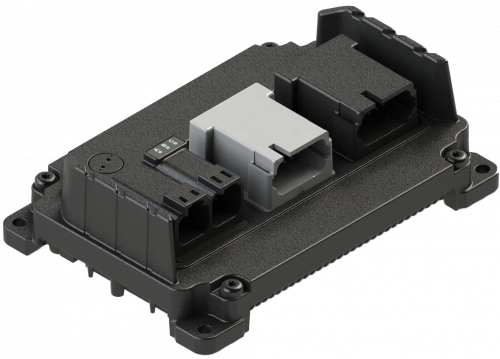

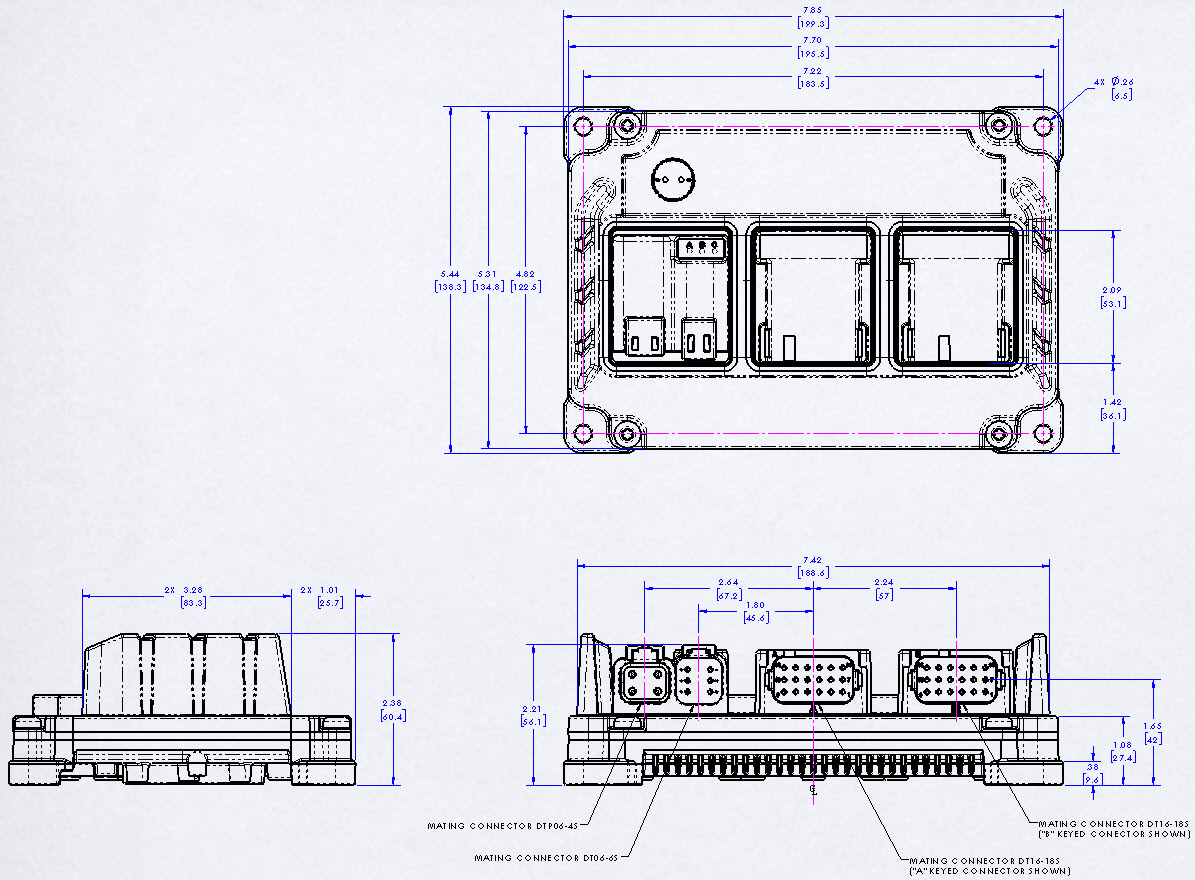

uControl™ MC3-21-10

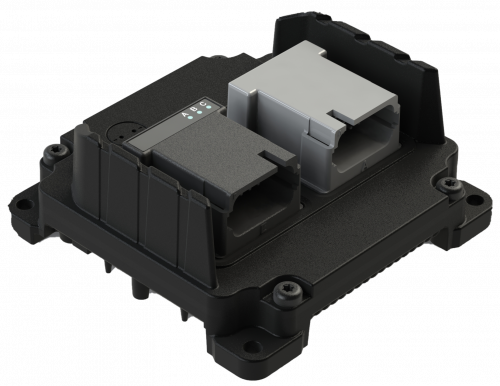

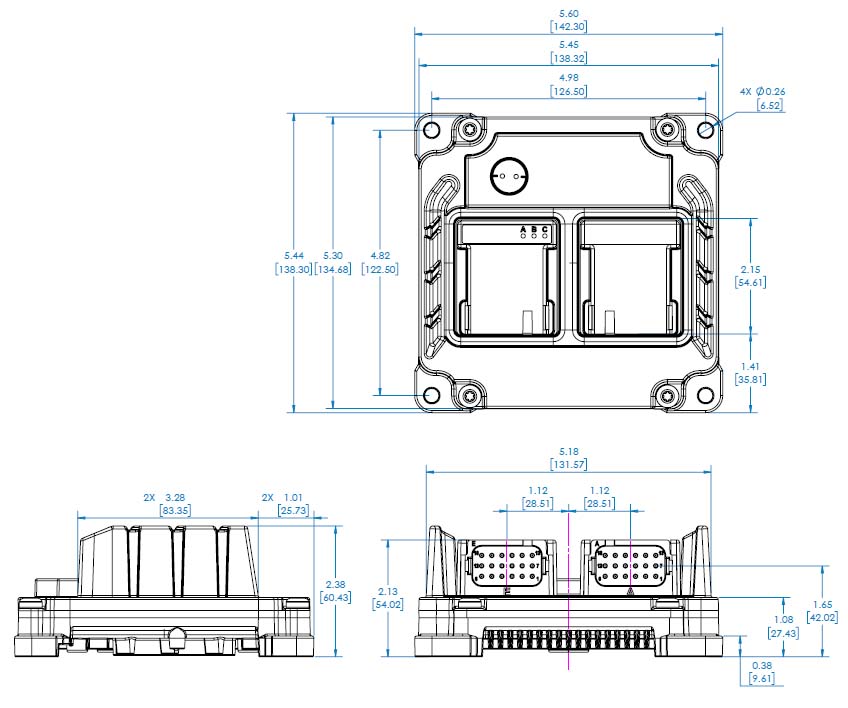

uControl™ MC2-18-6

Imcon Electronics Enovation Controls UCONTROL MC4 26 20 Imcon Electronics Enovation Controls UCONTROL MC4 21 14 H8 Imcon Electronics Enovation Controls UCONTROL  MC3 21 10 Imcon Electronics Enovation Controls UCONTROL MC2 18 6
  • Inputs (26):
    • Universal Analog / High Frequency: 10
    • Universal Analog: 16
  • Outputs (20):
    • 4A PWM (feedback): 10
    • Dual Range PWM 4A / 0.5 A (feedback): 10
    • 15A PWM (feedback): 0
  • Other:
    • CAN 2.0B Channels: 3
    • Sensor Supply: 2
  • Inputs (21):
    • Universal Analog / High Frequency: 8
    • Universal Analog: 13
  • Outputs (22):
    • 4A PWM (feedback): 6
    • Dual Range PWM 4A / 0.5 A (feedback): 8
    • 15A PWM (feedback): 8
  • Other:
    • CAN 2.0B Channels: 3
    • Sensor Supply: 2
  • Inputs (21):
    • Universal Analog / High Frequency: 8
    • Universal Analog: 13
  • Outputs (10):
    • 4A PWM (feedback): 6
    • Dual Range PWM 4A / 0.5 A (feedback): 4
    • 15A PWM (feedback): 0
  • Other:
    • CAN 2.0B Channels: 3
    • Sensor Supply: 1
  • Inputs (18):
    • Universal Analog / High Frequency: 4
    • Universal Analog: 14
  • Outputs (6):
    • 4A PWM (feedback): 2
    • Dual Range PWM 4A / 0.5 A (feedback): 4
    • 15A PWM (feedback): 0
  • Other:
    • CAN 2.0B Channels: 2
    • Sensor Supply: 1
  • Dimensions: 250 x 140 x 60 mm
  • Weight: Less than 5 pounds
  • Dimensions: 250 x 140 x 60 mm
  • Weight: Less than 5 pounds
  • Dimensions: 200 x 140 x 60 mm
  • Weight: Less than 5 pounds
  • Dimensions: 145 x 140 x 60 mm
  • Weight: Less than 5 pounds
  • Storage Temperature Range: -40 to +125 °C
  • Operating Temperature Range:
    -40 to +105 °C (May be limited to +85 at full rated current)
  • IP Rating: IP67
    (IP69K with harness-side rated boots)
  • Operating Altitude: 0-4000 m
  • Storage Temperature Range: -40 to +125 °C
  • Operating Temperature Range:
    -40 to +105 °C (May be limited to +85 at full rated current)
  • IP Rating: IP67
    (IP69K with harness-side rated boots)
  • Operating Altitude: 0-4000 m
  • Storage Temperature Range: -40 to +125 °C
  • Operating Temperature Range:
    -40 to +105 °C (May be limited to +85 at full rated current)
  • IP Rating: IP67
    (IP69K with harness-side rated boots)
  • Operating Altitude: 0-4000 m
  • Storage Temperature Range: -40 to +125 °C
  • Operating Temperature Range:
    -40 to +105 °C (May be limited to +85°C at full rated current)
  • IP Rating: IP67
    (IP69K with harness-side rated boots)
  • Operating Altitude: 0-4000 m
Power Supply Power Supply Power Supply Power Supply
  • Nominal Supply Voltage: 6-32 VDC
    Nominal Operation @ 12 /24 VDC
  • No-Damage: 38 VDC
  • Peak Voltage During Load Dump: Power supply suppression limits voltage to 55 Volts for duration of Load Dump Event (2 ohm supply)
  • Maximum Current: 50 A (25 A with only 1 Power / 1 GND connected)
  • Idle Current 12/24 VDC:
    • < 200mA @ 12VDC
    • < 100mA @ 24VDC
  • Standby Current 12/24 VDC:
    • < 5mA @12VDC
    • < 2.5mA @ 24VDC
  • Sleep Pin: Control sleep and wake settings
  • Nominal Supply Voltage: 6-32 VDC
    Nominal Operation @ 12 /24 VDC
  • No-Damage: 38 VDC
  • Peak Voltage During Load Dump: Power supply suppression limits voltage to 55 Volts for duration of Load Dump Event (2 ohm supply)
  • Maximum Current: 50 A (25 A with only 1 Power / 1 GND connected)
  • Idle Current 12/24 VDC:
    • < 200mA @ 12VDC
    • < 100mA @ 24VDC
  • Standby Current 12/24 VDC:
    • < 5mA @12VDC
    • < 2.5mA @ 24VDC
  • Node/Sleep Pin: Control sleep, wake and optional node settings
  • Nominal Supply Voltage: 6-32 VDC
    Nominal Operation @ 12 /24 VDC
  • No-Damage: 38 VDC
  • Peak Voltage During Load Dump: Power supply suppression limits voltage to 55 Volts for duration of Load Dump Event (2 ohm supply)
  • Maximum Current: 50 A (25 A with only 1 Power / 1 GND connected)
  • Idle Current 12/24 VDC:
    • < 200mA @ 12VDC
    • < 100mA @ 24VDC
  • Standby Current 12/24 VDC:
    • < 5mA @12VDC
    • < 2.5mA @ 24VDC
  • Sleep Pin: Control sleep and wake settings
  • Nominal Supply Voltage: 6-32 VDC
    Nominal Operation @ 12 /24 VDC
  • No-Damage: 38 VDC
  • Peak Voltage During Load Dump: Power supply suppression limits voltage to 55 Volts for duration of Load Dump Event (2 ohm supply)
  • Maximum Current: 50 A (25 A with only 1 Power / 1 GND connected)
  • Idle Current 12/24 VDC:
    • < 200mA @ 12VDC
    • < 100mA @ 24VDC
  • Standby Current 12/24 VDC:
    • < 5mA @12VDC
    • < 2.5mA @ 24VDC
  • Sleep Pin: Control sleep and wake settings
  • CAN Specification: 2.0B
  • Channels: 3 for MC4 platform
  • Baud rates: Software configurable: 250 kb/s to 1Mb/s
  • Protocol: J1939
  • Performance: 250 kb/s with three busses active. Busses loaded to 90%, and 50% capacity. No messages lost in 5 minutes of operation at specified loading.
  • CAN Specification: 2.0B
  • Channels: 3 for MC4 platform
  • Baud rates: Software configurable: 250 kb/s to 1Mb/s
  • Protocol: J1939
  • Performance: 250 kb/s with three busses active. Busses loaded to 90%, and 50% capacity. No messages lost in 5 minutes of operation at specified loading
  • CAN Specification: 2.0B
  • Channels: 3 for MC3 platform
  • Baud rates: Software configurable: 250 kb/s to 1Mb/s
  • Protocol: J1939
  • Performance: 250 kb/s with three busses active. Busses loaded to 90%, and 50% capacity. No messages lost in 5 minutes of operation at specified loading.
  • CAN Specification: 2.0B
  • Channels: 2 for MC2 platform
  • Baud rates: Software configurable: 250 kb/s to 1Mb/s
  • Protocol: J1939
  • Performance: 250 kb/s with three busses active. Busses loaded to 90%, and 50% capacity. No messages lost in 5 minutes of operation at specified loading.
Sensor Supply Sensor Supply Sensor Supply Sensor Supply
  • Number of Sensor Supplies: 2 supplies for MC4 platform
  • Sensor Supply Output Voltage: 5 VDC or 10 VDC (Software Selectable)
  • Accuracy: +/- 1% slaved to internal ADC reference
  • Sensor Supply Maximum Current:
    • 500mA @ 5 VDC output
    • 500mA @ 10 VDC output
  • Protection:
    • Overcurrent shutdown
    • Overtemperature Shutdown
    • Protection against application of external voltage
  • Number of Sensor Supplies: 2 supplies for MC4 platform
  • Sensor Supply Output Voltage: 5 VDC or 10 VDC (Software Selectable)
  • Accuracy: +/- 1% slaved to internal ADC reference
  • Sensor Supply Maximum Current:
    • 500mA @ 5 VDC output
    • 500mA @ 10 VDC output
  • Protection:
    • Overcurrent shutdown
    • Overtemperature Shutdown
    • Protection against application of external voltage
  • Number of Sensor Supplies: 1 supply for MC3 platform
  • Sensor Supply Output Voltage: 5 VDC or 10 VDC (Software Selectable)
  • Accuracy: +/- 1% slaved to internal ADC reference
  • Sensor Supply Maximum Current:
    • 500mA @ 5 VDC output
    • 500mA @ 10 VDC output
  • Protection:
    • Overcurrent shutdown
    • Overtemperature Shutdown
    • Protection against application of external voltage
  • Number of Sensor Supplies: 1 supply for MC2 platform
  • Sensor Supply Output Voltage: 5 VDC or 10 VDC (Software Selectable)
  • Accuracy: +/- 1% slaved to internal ADC reference
  • Sensor Supply Maximum Current:
    • 500mA @ 5 VDC output
    • 500mA @ 10 VDC output
  • Protection:
    • Overcurrent shutdown
    • Overtemperature Shutdown
    • Protection against application of external voltage
Inputs Analog function Inputs Analog function Inputs Analog function Inputs Analog function
  • ADC Resolution:12 bits
  • Accuracy (0-5 VDC mode):
    Typical +/- 0.2 % FS
  • Accuracy (all other modes):
    Typical +/- 1 % FS
  • Measuring Ranges: 0…5V (Absolute & Ratio-metric), 0...12V, 0...36V, 0...20mA

Voltage Mode - 0…5V

  • Supported Channels: (refer to Pinout)
  • Input Resistance: 10kΩ +/- 20%
  • Sampling Frequency: 1kHz

Voltage Mode - 0… 36V

  • Supported Channels: (refer to Pinout)
  • Input Resistance: 10kΩ +/- 20%
  • Sampling Frequency: 1kHz

Current Mode - 0…22 mA

  • Supported Channels: (refer to Pinout)
  • Input Resistance: 200Ω
  • Sampling Frequency: 1kHz

Resistive Mode - 100Ω…100 kΩ

  • Supported Channels: (refer to Pinout)
  • Input Resistance:
    Selectable 1kΩ or 22kΩ
  • Sampling Frequency: 1kHz
  • ADC Resolution:12 bits
  • Accuracy (0-5 VDC mode):
    Typical +/- 0.2 % FS
  • Accuracy (all other modes):
    Typical +/- 1 % FS
  • Measuring Ranges: 0…5V (Absolute & Ratio-metric), 0...12V, 0...36V, 0...20mA

Voltage Mode - 0…5V

  • Supported Channels: (refer to Pinout)
  • Input Resistance: 10kΩ +/- 20%
  • Sampling Frequency: 1kHz

Voltage Mode - 0… 36V

  • Supported Channels: (refer to Pinout)
  • Input Resistance: 10kΩ +/- 20%
  • Sampling Frequency: 1kHz

Current Mode - 0…22 mA

  • Supported Channels: (refer to Pinout)
  • Input Resistance: 200Ω
  • Sampling Frequency: 1kHz

Resistive Mode - 100Ω…100 kΩ

  • Supported Channels: (refer to Pinout)
  • Input Resistance:
    Selectable 1kΩ or 22kΩ
  • Sampling Frequency: 1kHz
  • ADC Resolution:12 bits
  • Accuracy (0-5 VDC mode):
    Typical +/- 0.2 % FS
  • Accuracy (all other modes):
    Typical +/- 1 % FS
  • Measuring Ranges: 0…5V (Absolute & Ratio-metric), 0...12V, 0...36V, 0...20mA

Voltage Mode - 0…5V

  • Supported Channels: (refer to Pinout)
  • Input Resistance: 10kΩ +/- 20%
  • Sampling Frequency: 1kHz

Voltage Mode - 0… 36V

  • Supported Channels: (refer to Pinout)
  • Input Resistance: 10kΩ +/- 20%
  • Sampling Frequency: 1kHz

Current Mode - 0…22 mA

  • Supported Channels: (refer to Pinout)
  • Input Resistance: 200Ω
  • Sampling Frequency: 1kHz

Resistive Mode - 100Ω…100 kΩ

  • Supported Channels: (refer to Pinout)
  • Input Resistance:
    Selectable 1kΩ or 22kΩ
  • Sampling Frequency: 1kHz
  • ADC Resolution:12 bits
  • Accuracy (0-5 VDC mode):
    Typical +/- 0.2 % FS
  • Accuracy (all other modes):
    Typical +/- 1 % FS
  • Measuring Ranges: 0…5V (Absolute & Ratio-metric), 0...12V, 0...36V, 0...20mA

Voltage Mode - 0…5V

  • Supported Channels: (refer to Pinout)
  • Input Resistance: 10kΩ +/- 20%
  • Sampling Frequency: 1kHz

Voltage Mode - 0… 36V

  • Supported Channels: (refer to Pinout)
  • Input Resistance: 10kΩ +/- 20%
  • Sampling Frequency: 1kHz

Current Mode - 0…22 mA

  • Supported Channels: (refer to Pinout)
  • Input Resistance: 200Ω
  • Sampling Frequency: 1kHz

Resistive Mode - 100Ω…100 kΩ

  • Supported Channels: (refer to Pinout)
  • Input Resistance:
    Selectable 1kΩ or 22kΩ
  • Sampling Frequency: 1kHz

Digital Mode

  • Supported Channels: (refer to Pinout)
  • Type: Low/High side (Software configurable)
  • Input Impedance: 10 kΩ +/-20%
  • Sampling Frequency: 250 Hz
  • Switch-on Level: Software Configurable from 0 to 36V
  • Switch-off Level: Software Configurable from 0 to 36V

High Frequency Mode

  • Supported Channels: (refer to Pinout)
  • Type: Single ended, digital low/high side software configurable
  • Input Impedance: 10 kΩ +/- 20%
  • Input Frequency: 1Hz…50kHz
  • Input Voltage Range Selectable digital threshold with hysteresis
  • Threshold 1 for digital signals in range of 0-5Volts:
    • Standard switch on at 2.5 V
    • Standard switch off at 1.25 V
  • Threshold 2 for digital signals in range of 0-System voltage:
    • Standard switch on at 7.5 V
    • Standard switch off at 3.75 V
  • Input Pull-ups selectable in software:
    • 22k to 5 Volts
    • 22k to system supply voltage

Digital Mode

  • Supported Channels: (refer to Pinout)
  • Type: Low/High side (Software configurable)
  • Input Impedance: 10 kΩ +/-20%
  • Sampling Frequency: 250 Hz
  • Switch-on Level: Software Configurable from 0 to 36V
  • Switch-off Level: Software Configurable from 0 to 36V

High Frequency Mode

  • Supported Channels: (refer to Pinout)
  • Type: Single ended, digital low/high side software configurable
  • Input Impedance: 10 kΩ +/- 20%
  • Input Frequency: 1Hz…50kHz
  • Input Voltage Range Selectable digital threshold with hysteresis
  • Threshold 1 for digital signals in range of 0-5Volts:
    • Standard switch on at 2.5 V
    • Standard switch off at 1.25 V
  • Threshold 2 for digital signals in range of 0-System voltage:
    • Standard switch on at 7.5 V
    • Standard switch off at 3.75 V
  • Input Pull-ups selectable in software:
    • 22k to 5 Volts
    • 22k to system supply voltage

Digital Mode

  • Supported Channels: (refer to Pinout)
  • Type: Low/High side (Software configurable)
  • Input Impedance: 10 kΩ +/-20%
  • Sampling Frequency: 250 Hz
  • Switch-on Level: Software Configurable from 0 to 36V
  • Switch-off Level: Software Configurable from 0 to 36V

High Frequency Mode

  • Supported Channels: (refer to Pinout)
  • Type: Single ended, digital low/high side software configurable
  • Input Impedance: 10 kΩ +/- 20%
  • Input Frequency: 1Hz…50kHz
  • Input Voltage Range Selectable digital threshold with hysteresis
  • Threshold 1 for digital signals in range of 0-5Volts:
    • Standard switch on at 2.5 V
    • Standard switch off at 1.25 V
  • Threshold 2 for digital signals in range of 0-System voltage:
    • Standard switch on at 7.5 V
    • Standard switch off at 3.75 V
  • Input Pull-ups selectable in software:
    • 22k to 5 Volts
    • 22k to system supply voltage

Digital Mode

  • Supported Channels: (refer to Pinout)
  • Type: Low/High side (Software configurable)
  • Input Impedance: 10 kΩ +/-20%
  • Sampling Frequency: 250 Hz
  • Switch-on Level: Software Configurable from 0 to 36V
  • Switch-off Level: Software Configurable from 0 to 36V

High Frequency Mode

  • Supported Channels: (refer to Pinout)
  • Type: Single ended, digital low/high side software configurable
  • Input Impedance: 10 kΩ +/- 20%
  • Input Frequency: 1Hz…50kHz
  • Input Voltage Range Selectable digital threshold with hysteresis
  • Threshold 1 for digital signals in range of 0-5Volts:
    • Standard switch on at 2.5 V
    • Standard switch off at 1.25 V
  • Threshold 2 for digital signals in range of 0-System voltage:
    • Standard switch on at 7.5 V
    • Standard switch off at 3.75 V
  • Input Pull-ups selectable in software:
    • 22k to 5 Volts
    • 22k to system supply voltage

Digital Output - 4A

  • Type: Half-bridge output with software selectable operational modes (not for proportional drive)
  • Operational Mode: Push-Pull (drive output to supply voltage or drive to ground)
  • Extended Modes: H-Bridge capable when paired with a Proportional Output with the same rating
  • Maximum Current Rating: 10 Amps
  • Continuous Rating: 4 Amps
  • Diagnostics: Open/Short Circuit Protection
  • Fault Modes:
    • Auto-recovery or latching overcurrent.
    • Auto-recovery or latching short circuit or open circuit.
    • Overtemperature

Digital Output - 4A

  • Type: Half-bridge output with software selectable operational modes (not for proportional drive)
  • Operational Mode: Push-Pull (drive output to supply voltage or drive to ground)
  • Extended Modes: H-Bridge capable when paired with a Proportional Output with the same rating
  • Maximum Current Rating: 10 Amps
  • Continuous Rating: 4 Amps
  • Diagnostics: Open/Short Circuit Protection
  • Fault Modes:
    • Auto-recovery or latching overcurrent.
    • Auto-recovery or latching short circuit or open circuit.
    • Overtemperature

Digital Output - 4A

  • Type: Half-bridge output with software selectable operational modes (not for proportional drive)
  • Operational Mode: Push-Pull (drive output to supply voltage or drive to ground)
  • Extended Modes: H-Bridge capable when paired with a Proportional Output with the same rating
  • Maximum Current Rating: 10 Amps
  • Continuous Rating: 4 Amps
  • Diagnostics: Open/Short Circuit Protection
  • Fault Modes:
    • Auto-recovery or latching overcurrent.
    • Auto-recovery or latching short circuit or open circuit.
    • Overtemperature

Digital Output - 4A

  • Type: Half-bridge output with software selectable operational modes (not for proportional drive)
  • Operational Mode: Push-Pull (drive output to supply voltage or drive to ground)
  • Extended Modes: H-Bridge capable when paired with a Proportional Output with the same rating
  • Maximum Current Rating: 10 Amps
  • Continuous Rating: 4 Amps
  • Diagnostics: Open/Short Circuit Protection
  • Fault Modes:
    • Auto-recovery or latching overcurrent.
    • Auto-recovery or latching short circuit or open circuit.
    • Overtemperature

Proportional (PWM) Output - 4A

  • Type: Half-bridge output with software selectable operational modes
  • Operational Modes: Push-Pull, High-Side Drive (float low) Low-side Drive (float high)
  • Extended Modes:
    • Proportional drive via PWM
    • Closed Loop Current Control
    • H-Bridge capable when paired with any other output with the same rating
  • Maximum Current Rating: 10 Amps
  • Continuous Current Rating: 4 Amps
  • Diagnostics: Open/Short Circuit Protection
  • PWM Frequency: 50 Hz – 5 kHz
  • Dither Frequency: Configurable
  • Dither Amplitude: Configurable
  • Control Range: 0.05 - 4A
  • Control Resolution: 1 mA
  • Fly Back Protection: Integrated
  • Duty Cycle Resolution: .01% @ 250Hz
  • Fault Modes:
    • Auto-recovery or latching overcurrent.
    • Auto-recovery or latching short circuit or open circuit.
    • Overtemperature

Proportional (PWM) Output - 4A

  • Type: Half-bridge output with software selectable operational modes
  • Operational Modes: Push-Pull, High-Side Drive (float low) Low-side Drive (float high)
  • Extended Modes:
    • Proportional drive via PWM
    • Closed Loop Current Control
    • H-Bridge capable when paired with any other output with the same rating
  • Maximum Current Rating: 10 Amps
  • Continuous Current Rating: 4 Amps
  • Diagnostics: Open/Short Circuit Protection
  • PWM Frequency: 50 Hz – 5 kHz
  • Dither Frequency: Configurable
  • Dither Amplitude: Configurable
  • Control Range: 0.05 - 4A
  • Control Resolution: 1 mA
  • Fly Back Protection: Integrated
  • Duty Cycle Resolution: .01% @ 250Hz
  • Fault Modes:
    • Auto-recovery or latching overcurrent.
    • Auto-recovery or latching short circuit or open circuit.
    • Overtemperature

Proportional (PWM) Output - 4A

  • Type: Half-bridge output with software selectable operational modes
  • Operational Modes: Push-Pull, High-Side Drive (float low) Low-side Drive (float high)
  • Extended Modes:
    • Proportional drive via PWM
    • Closed Loop Current Control
    • H-Bridge capable when paired with any other output with the same rating
  • Maximum Current Rating: 10 Amps
  • Continuous Current Rating: 4 Amps
  • Diagnostics: Open/Short Circuit Protection
  • PWM Frequency: 50 Hz – 5 kHz
  • Dither Frequency: Configurable
  • Dither Amplitude: Configurable
  • Control Range: 0.05 - 4A
  • Control Resolution: 1 mA
  • Fly Back Protection: Integrated
  • Duty Cycle Resolution: .01% @ 250Hz
  • Fault Modes:
    • Auto-recovery or latching overcurrent.
    • Auto-recovery or latching short circuit or open circuit.
    • Overtemperature

Proportional (PWM) Output - 4A

  • Type: Half-bridge output with software selectable operational modes
  • Operational Modes: Push-Pull, High-Side Drive (float low) Low-side Drive (float high)
  • Extended Modes:
    • Proportional drive via PWM
    • Closed Loop Current Control
    • H-Bridge capable when paired with any other output with the same rating
  • Maximum Current Rating: 10 Amps
  • Continuous Current Rating: 4 Amps
  • Diagnostics: Open/Short Circuit Protection
  • PWM Frequency: 50 Hz – 5 kHz
  • Dither Frequency: Configurable
  • Dither Amplitude: Configurable
  • Control Range: 0.05 - 4A
  • Control Resolution: 1 mA
  • Fly Back Protection: Integrated
  • Duty Cycle Resolution: .01% @ 250Hz
  • Fault Modes:
    • Auto-recovery or latching overcurrent.
    • Auto-recovery or latching short circuit or open circuit.
    • Overtemperature

PWM Output Dual Range w/
Current Feedback - 4A / 0.5A

  • Type:
    • Low/High side, H-bridge (Software configurable*)
      *Note: Software configurable as push/pull or float
  • Max Amperage: 4A
  • Diagnostics: Open/Short Circuit Protection
  • PWM Frequency: 50 – 5 kHz
  • Dither Frequency: Configurable
  • Dither Amplitude: Configurable
  • Control Range:
    • Low Current Mode: 0.005 – 0.5A
    • High Current Mode: 0.05 - 4A
      (Software configurable)
  • Control Resolution:
    • Low Current Mode: 1mA
    • High Current Mode: 1 mA
      (Software configurable)
  • Fly Back Protection: Integrated
  • Duty Cycle Resolution: .01% @ 250Hz
  • Fault Modes:
    • Auto-recovery or latching overcurrent.
    • Auto-recovery or latching short circuit or open circuit.
    • Overtemperature

PWM Output Dual Range w/
Current Feedback - 4A / 0.5A

  • Type:
    • Low/High side, H-bridge (Software configurable*)
      *Note: Software configurable as push/pull or float
  • Max Amperage: 4A
  • Diagnostics: Open/Short Circuit Protection
  • PWM Frequency: 50 – 5 kHz
  • Dither Frequency: Configurable
  • Dither Amplitude: Configurable
  • Control Range:
    • Low Current Mode: 0.005 – 0.5A
    • High Current Mode: 0.05 - 4A
      (Software configurable)
  • Control Resolution:
    • Low Current Mode: 1mA
    • High Current Mode: 1 mA
      (Software configurable)
  • Fly Back Protection: Integrated
  • Duty Cycle Resolution: .01% @ 250Hz
  • Fault Modes:
    • Auto-recovery or latching overcurrent.
    • Auto-recovery or latching short circuit or open circuit.
    • Overtemperature

PWM Output Dual Range w/
Current Feedback - 4A / 0.5A

  • Type:
    • Low/High side, H-bridge (Software configurable*)
      *Note: Software configurable as push/pull or float
  • Max Amperage: 4A
  • Diagnostics: Open/Short Circuit Protection
  • PWM Frequency: 50 – 5 kHz
  • Dither Frequency: Configurable
  • Dither Amplitude: Configurable
  • Control Range:
    • Low Current Mode: 0.005 – 0.5A
    • High Current Mode: 0.05 - 4A
      (Software configurable)
  • Control Resolution:
    • Low Current Mode: 1mA
    • High Current Mode: 1 mA
      (Software configurable)
  • Fly Back Protection: Integrated
  • Duty Cycle Resolution: .01% @ 250Hz
  • Fault Modes:
    • Auto-recovery or latching overcurrent.
    • Auto-recovery or latching short circuit or open circuit.
    • Overtemperature

PWM Output Dual Range w/
Current Feedback - 4A / 0.5A

  • Type:
    • Low/High side, H-bridge (Software configurable*)
      *Note: Software configurable as push/pull or float
  • Max Amperage: 4A
  • Diagnostics: Open/Short Circuit Protection
  • PWM Frequency: 50 – 5 kHz
  • Dither Frequency: Configurable
  • Dither Amplitude: Configurable
  • Control Range:
    • Low Current Mode: 0.005 – 0.5A
    • High Current Mode: 0.05 - 4A
      (Software configurable)
  • Control Resolution:
    • Low Current Mode: 1mA
    • High Current Mode: 1 mA
      (Software configurable)
  • Fly Back Protection: Integrated
  • Duty Cycle Resolution: .01% @ 250Hz
  • Fault Modes:
    • Auto-recovery or latching overcurrent.
    • Auto-recovery or latching short circuit or open circuit.
    • Overtemperature

PWM Output w/ Current Feedback  15A Single, 25A in parallel mode

  • Type:
    • Low/High side, H-bridge (Software configurable*)
      *Note: Software configurable as push/pull or float
  • Max Amperage:
    • 15A Continuous
    • 40A Peak
    • Parallel with mated high side driver for 25A
  • Diagnostics: Open/Short Circuit Protection
  • PWM Frequency: 50 – 2 kHz
  • Dither Frequency: Configurable
  • Dither Amplitude: Configurable
  • Control Range:
    • 0.1A – 15A
    • 0.1A – 25A (when in parallel with additional high side channel)
  • Control Resolution: 20mA
  • Fly Back Protection: Integrated
  • Duty Cycle Resolution: .01% @ 250Hz
  • Fault Modes:
    • Auto-recovery or latching overcurrent.
    • Auto-recovery or latching short circuit or open circuit.
    • Overtemperature
  • Output Indication:
    • LED with output state & fault state
    • Single Green LED per output
LED indicators LED indicators LED indicators LED indicators
  • Power Status: 1x Green LED
  • Software Configurable: 1x White LED
  • Software Configurable: 1x Blue LED
  • Power Status: 1x Green LED
  • Software Configurable: 1x White LED
  • Software Configurable: 1x Blue LED
  • Power Status: 1x Green LED
  • Software Configurable: 1x White LED
  • Software Configurable: 1x Blue LED
  • Power Status: 1x Green LED
  • Software Configurable: 1x White LED
  • Software Configurable: 1x Blue LED

High Current Output Status

  • Output Inactive: Indicator is Dark
  • Output Active: Solid Green
  • Output in Fault: Blinking Green with code indicating fault

Mating Connector J1 – 18 Pin with E Key

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DT16-18SE-K004
  • Harness-side Terminal Part Number:
    • 1062-16-0122
    • Stamped & Formed, Nickel-plated

Mating Connector J1A – 4 Pin

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DTP06-4S
  • Harness-side Terminal Part Number:
    • 1062-12-0166
    • Stamped & Formed, Nickel-plated
  • Harness-side Wedge Part Number: WP-4S

Mating Connector J1A – 4 Pin

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DTP06-4S
  • Harness-side Terminal Part Number:
    • 1062-12-0166
    • Stamped & Formed, Nickel-plated
  • Harness-side Wedge Part Number: WP-4S

Mating Connector J1A – 4 Pin

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DTP06-4S
  • Harness-side Terminal Part Number:
    • 1062-12-0166
    • Stamped & Formed, Nickel-plated
  • Harness-side Wedge Part Number: WP-4S

Mating Connector J1B – 6 Pin

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DT06-6S-E008
  • Harness-side Terminal Part Number:
    • 1062-16-0122
    • Stamped & Formed, Nickel-plated
  • Harness-side Wedge Part Number: W6S

Mating Connector J1B – 6 Pin

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DT06-6S-E008
  • Harness-side Terminal Part Number:
    • 1062-16-0122
    • Stamped & Formed, Nickel-plated
  • Harness-side Wedge Part Number: W6S

Mating Connector J1B – 6 Pin

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DT06-6S-E008
  • Harness-side Terminal Part Number:
    • 1062-16-0122
    • Stamped & Formed, Nickel-plated
  • Harness-side Wedge Part Number: W6S

Mating Connector J2 – 18 Pin

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DT16-18SA-K004
  • Harness-side Terminal Part Number:
    • 1062-16-0122
    • Stamped & Formed, Nickel-plated

Mating Connector J2 – 18 Pin with A Key

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DT16-18SA-K004
  • Harness-side Terminal Part Number:
    • 1062-16-0122
    • Stamped & Formed, Nickel-plated

Mating Connector J2 – 18 Pin with A Key

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DT16-18SA-K004
  • Harness-side Terminal Part Number:
    • 1062-16-0122
    • Stamped & Formed, Nickel-plated

Mating Connector J2 – 18 Pin with A Key

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DT16-18SA-K004
  • Harness-side Terminal Part Number:
    • 1062-16-0122
    • Stamped & Formed, Nickel-plate

Mating Connector J3 – 18 Pin with B Key

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DT16-18SB-K004
  • Harness-side Terminal Part Number:
    • 1062-16-0122
    • Stamped & Formed, Nickel-plated

Mating Connector J3 – 18 Pin with B Key

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DT16-18SB-K004
  • Harness-side Terminal Part Number:
    • 1062-16-0122
    • Stamped & Formed, Nickel-plated

Mating Connector J3 – 18 Pin with B Key

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DT16-18SB-K004
  • Harness-side Terminal Part Number:
    • 1062-16-0122
    • Stamped & Formed, Nickel-plated

Mating Connector J4 – 18 Pin with C Key

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DT16-18SC-K004
  • Harness-side Terminal Part Number:
    • 1062-16-0122
    • Stamped & Formed, Nickel-plated

Mating Connector J4 – 18 Pin with D Key

  • Manufacturer: Deutsch Inc.
  • Harness-side Connector Part Number: DT16-18SD-K004
  • Harness-side Terminal Part Number:
    • 1062-16-0122
    • Stamped & Formed, Nickel-plated
Imcon Electronics Enovation Controls UCONTROL MC4 26 20 technicky nakres Imcon Electronics Enovation Controls UCONTROL MC4 21 14 H8 produktove informace Imcon Electronics Enovation Controls UCONTROL  MC3 21 10 produktove informace Imcon Electronics Enovation Controls UCONTROL  MC2 18 6 produktove informace

Přihlaste se prosím znovu

Omlouváme se, ale Váš CSRF token pravděpodobně vypršel. Abychom mohli udržet Vaši bezpečnost na co největší úrovni potřebujeme, abyste se znovu přihlásili.

Děkujeme za pochopení.

Přihlášení
